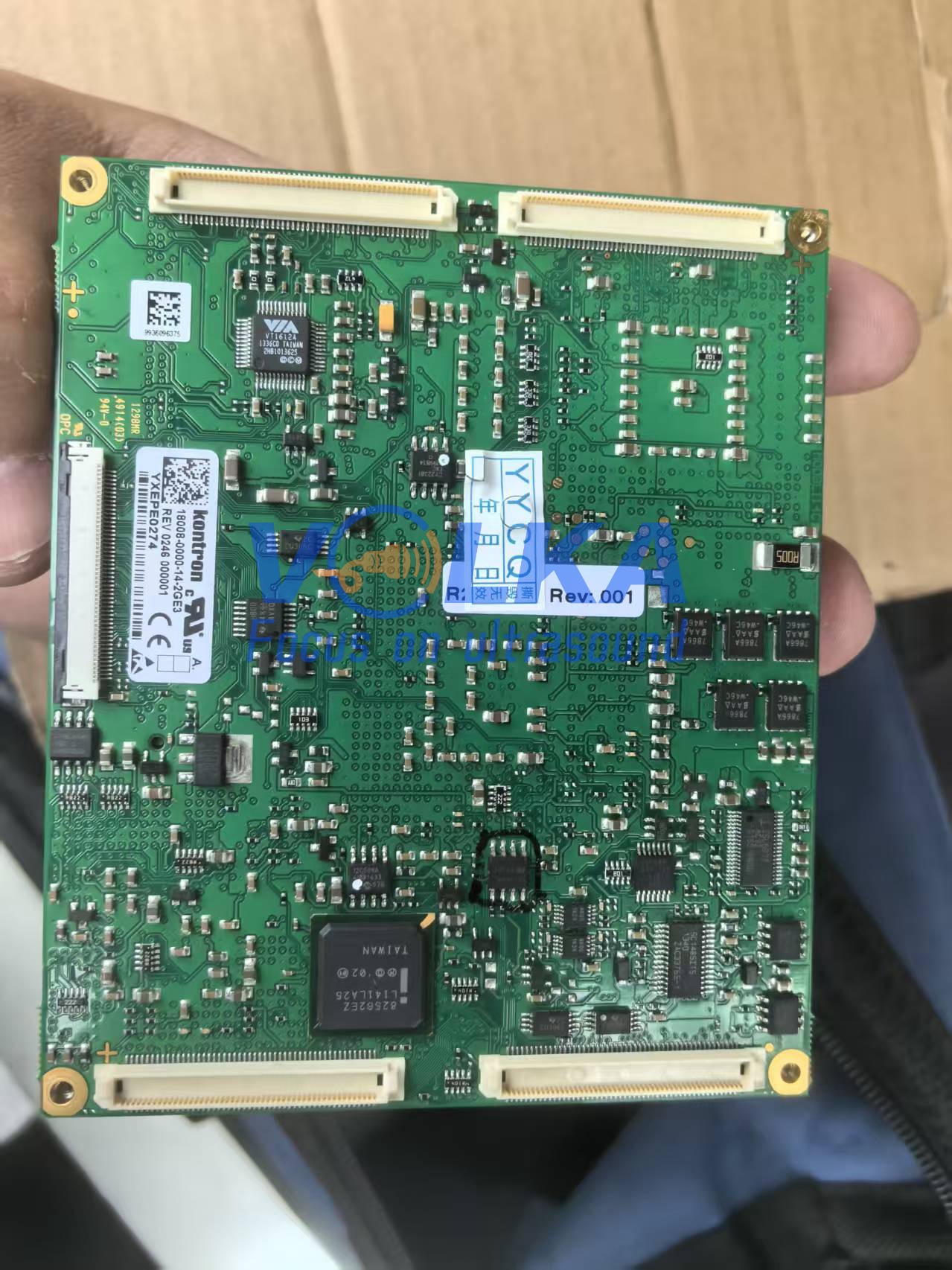

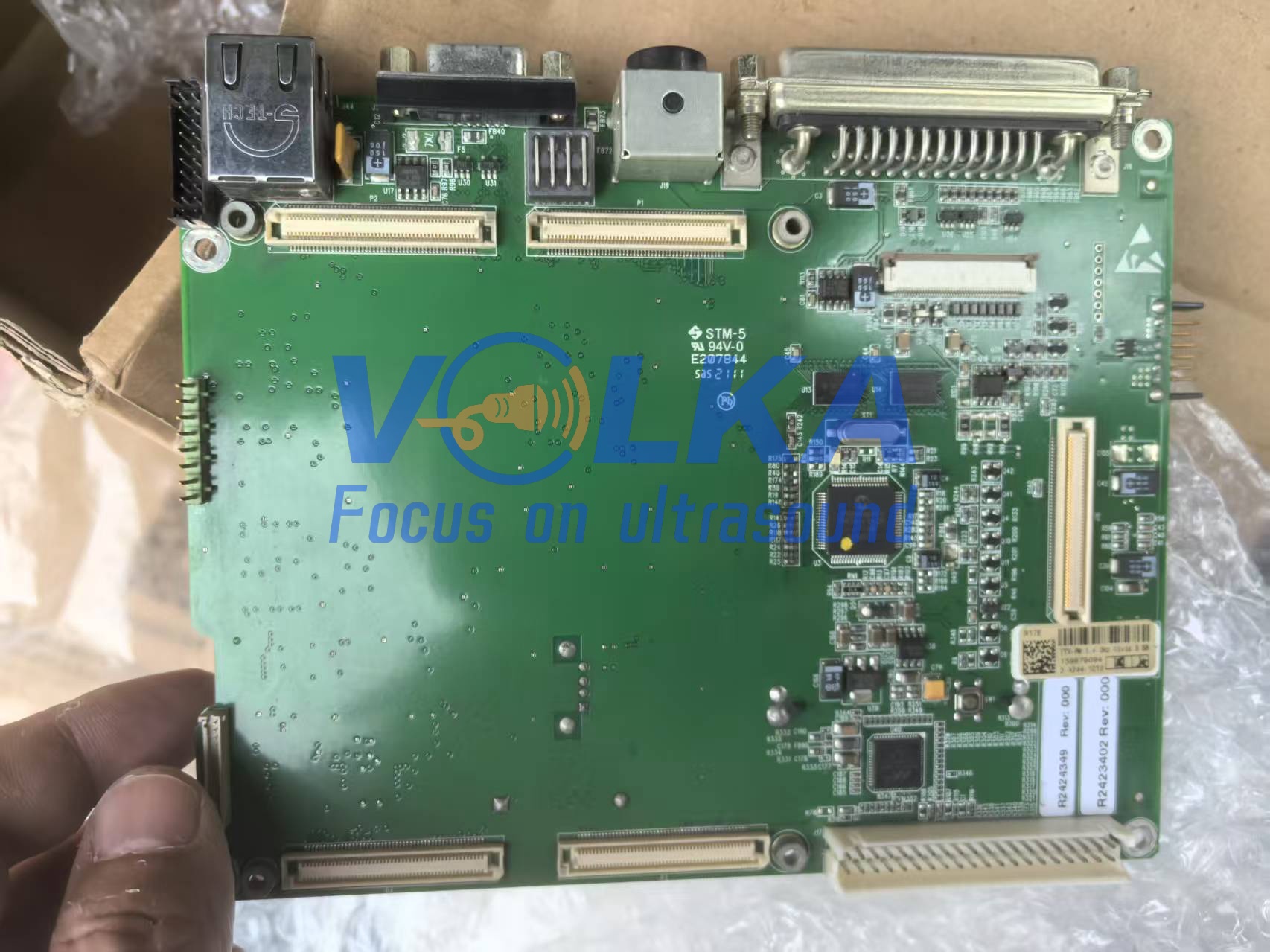

GE Vivid Q-SATA IDE BEP CPU board assy KIT S2424596
1. Part number: S2424596
2. Type: BEP assy
3. Trade term: Outright/Exchange/Repair service are provided.
4. Warranty: 60 days
More details welcome to contact with us!
GE VIVID Q Ultrasound system
Vivid q builds on the many innovative features and technologies of the Vivid line with performance, quantitative analysis tools, and a wide range of applications. Perform robust, comprehensive diagnostic exams.
Get comprehensive, real-time diagnostic results—in any clinical environment. The versatility of shared service applications helps provide convenience to patients and operators.
Features:
• 2D Imaging
• CW Doppler
• Smart Depth Technology
• Coded Octave Imaging
• Tissue Tracking (TT)
• Tissue Velocity Imaging (TVI)
• Automated Function Imaging (AFI)
• Tissue Synchronization Imaging (TSI)
• Intracardiac Echo Imaging (ICE)
• Integrated Stress Echo
• Deep penetration in Cardiac and Vascular/Small Parts imaging
• Excellent image quality
• CrossXBeam
• SRI Speckle Reduction Imaging
• Triplex Imaging
• 15” LCD
• Internal Hard Drive
• Export to digital media such as DVD, Flash Drive, Hard Drive, Network
• Tissue Harmonic imaging
• High-Resolution Zoom
• Auto Tissue Optimization
• Full range of cardiac, convex, TEE, and linear transducers
• Full DICOM connectivity
Additional Options:
Tissue Tracking, Tissue Velocity Imaging, Blood Flow Imaging (B-Flow), TSI Tissue Syncronization Imaging, Automated Ejection-Fraction calculation, Stress Echo, Contrast Imaging, IMT Measurement Program, Quantitave Analysis Q-Analysis), LVO Contrast, and LogiqView (panoramic imaging)
Data Acquisition
• Customizable system architecture
• App-specific Channel Architecture
o Uses a flexible digital beam capable of using up to 1024 channels
o Supports Phased Array, Linear and Curved Array, TEE, 2D-ICE and non-imaging Pencil transducers
o Access focusing, aperture, apodization and frequency response as a constant variable as a function of depth
o Wide aperture mode in convex or linear array probes
Data Processing
• Easy to upgrade
• Echo data processing for frequency, amplitude and phase
• Digital raw replay for post processing imaging and offline analysis and measurements
Display
• 15-inch flat screen, high resolution
• 1600 x 1200 pixels with
• Scanner resolution 800 x 600 pixel
• Screen can be tilted from 0-180 degreses
• Easily adjust digital brightness, contrast and blue-tint for optimal ciewing
• Closing screen puts system into standby mode for fast boot when opened
|
|
GE Vivid Q-SATA IDE BEP CPU board assy KIT S2424596 Images
|
